1. Project Overview
Project Name: Anhui Shucheng Industrial Park Membrane Structure Entrance Project
Project Type: Membrane Structure Entrance Canopy
Location: Shucheng County, Lu’an City, Anhui Province, China
Industry Application: Industrial Park & Factory Campus
Project Scale: 35m × 10m, overall height 8m, large-span full coverage design
Construction Period: 30 days for full completion and delivery
This customized membrane structure canopy project is built for the main entrance of Shucheng Industrial Park, serving as an essential supporting facility for the industrial park. It provides effective sunshade and rainproof protection for entrance guard booths, security staff, and gate barrier equipment. Besides practical functions, the streamlined tension membrane shape optimizes the overall facade of the park entrance, upgrading the overall appearance and high-end sense of the industrial park.
2. Construction Difficulties
The project faced two core construction challenges. First, the construction schedule was extremely tight, requiring rapid completion and delivery to put the supporting facility into official use as soon as possible. Second, the construction process must not interfere with daily vehicle and pedestrian access at the park’s main entrance. As a key passage for park commuting and production transportation, strict on-site management and optimized construction scheduling were required to ensure zero impact on the park’s normal operation.
3. Custom Design & Construction Solution
According to the local wind and snow load standards of Shucheng, Anhui, combined with the requirements of tight construction period and non-interference passage, we customized an assembled lightweight tension membrane solution with high safety and practicality:
1. Membrane Material: High-quality PVDF architectural membrane with excellent self-cleaning performance, UV resistance, aging resistance and tear resistance. It is not easy to turn yellow or damage in long-term outdoor exposure, and surface dust can be washed away by rainwater, greatly reducing later maintenance costs.
2. Main Structure: Adopts national standard Q235 steel frame with professional anti-corrosion and rust-proof coating treatment. The structure is stable and load-bearing, with mechanical calculation strictly complying with local wind and snow load standards, featuring strong wind and pressure resistance for long-term outdoor service.
3. Auxiliary Accessories: Equipped with high-strength steel cables, stainless steel anchors and tension adjusting parts to ensure uniform membrane tension, effectively avoiding structural loosening, water accumulation and deformation.
4. Construction Technology: Adopts the integrated model of factory prefabrication + on-site segmented hoisting. All steel components and membrane materials are prefabricated in the factory. Only assembly, hoisting and tension molding are completed on site, which greatly shortens the on-site construction cycle and avoids interference with park traffic.
4. Project Completion Effect

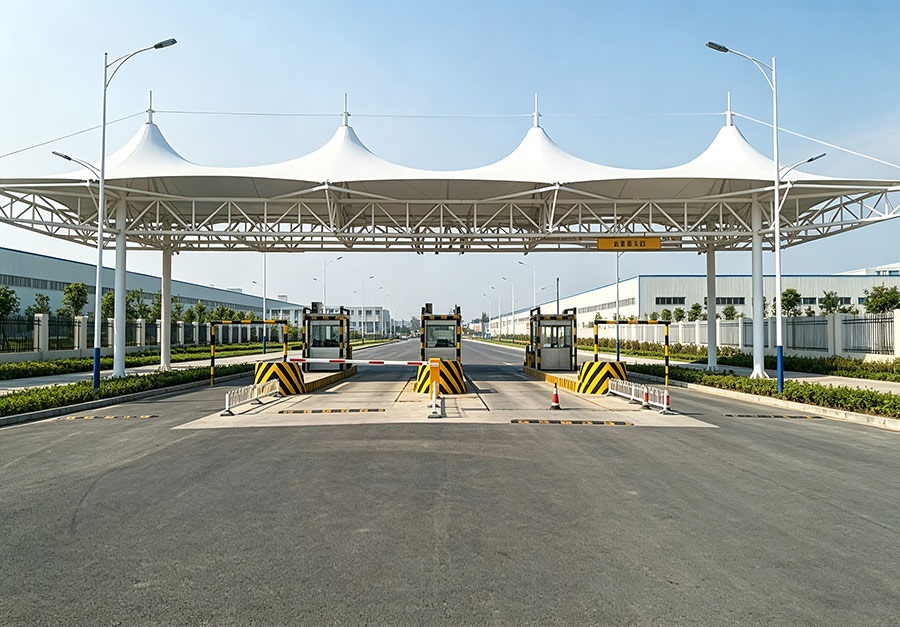

The membrane structure entrance project of Shucheng Industrial Park has been fully completed and officially put into use. The membrane surface is flat and tight without wrinkles, the steel structure coating is complete and uniform, and all welding details are finely processed, presenting a smooth and atmospheric overall shape.

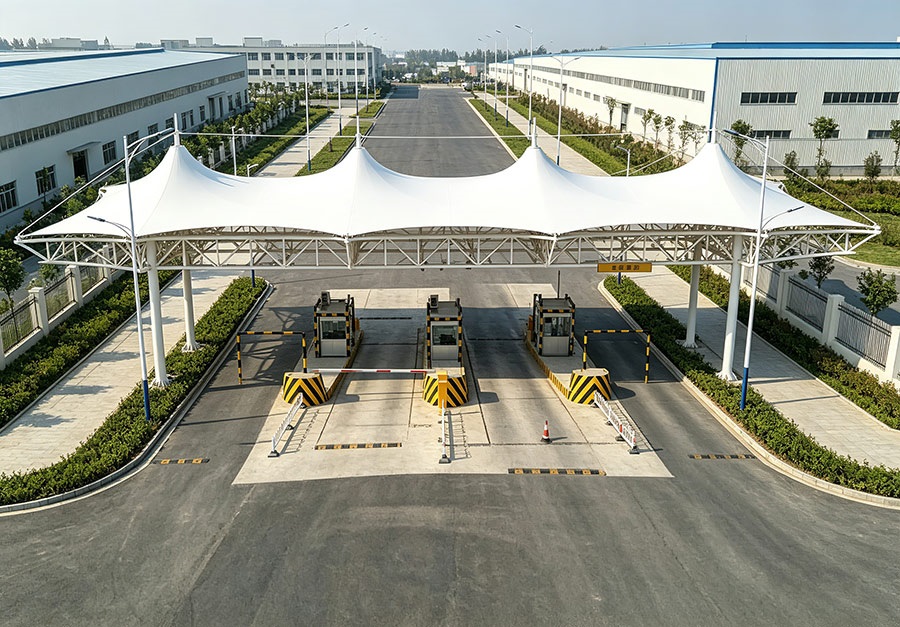

In terms of functionality, the 35m large-span canopy fully covers the entrance gate, guard booth and passage area. It realizes comprehensive sunshade, rainproof, windproof and dustproof effects, protecting staff and entrance equipment from harsh outdoor weather.
In terms of aesthetics, the modern and minimalist tension membrane design is perfectly compatible with the architectural style of the industrial park. It replaces the bulky and old traditional canopy, greatly improving the overall grade and visual image of the park entrance.
5. Client Feedback
Facing the tight construction period and strict on-site construction restrictions, our team completed all construction tasks with high quality and efficiency without affecting the normal operation of the park. After acceptance, the client highly recognized the project. They commented that the membrane surface is flat and beautiful, the steel structure is stable and durable, and the overall effect fully meets the expected functional and aesthetic requirements.
6. Service & Inquiry
This is a real completed case of industrial park membrane structure entrance canopy, showing the professional design and construction strength of tension membrane shade structures. We specialize in customized membrane structure projects for industrial parks, factory campuses and public passages, providing one-stop services including site survey, scheme design, structural calculation, production and installation.
We support customized size and shape solutions for global clients. Feel free to contact us for free quotation, project case inspection and technical consultation.
