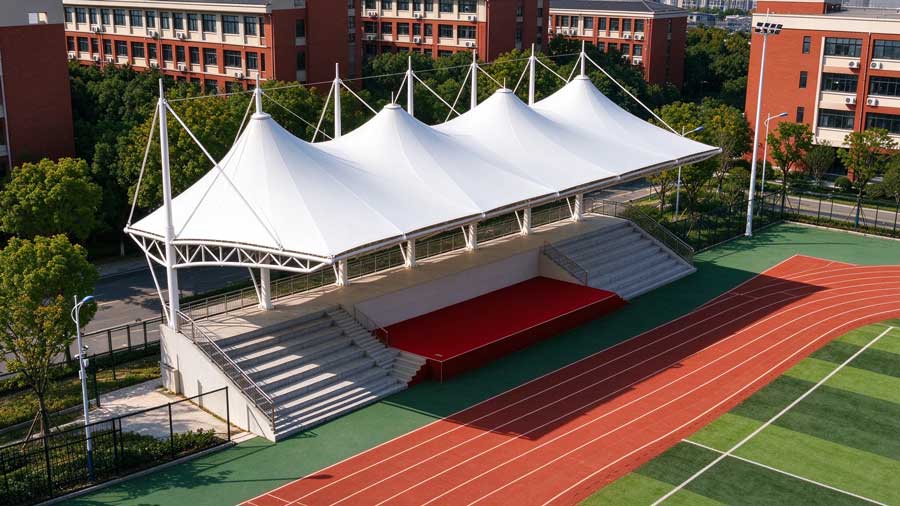

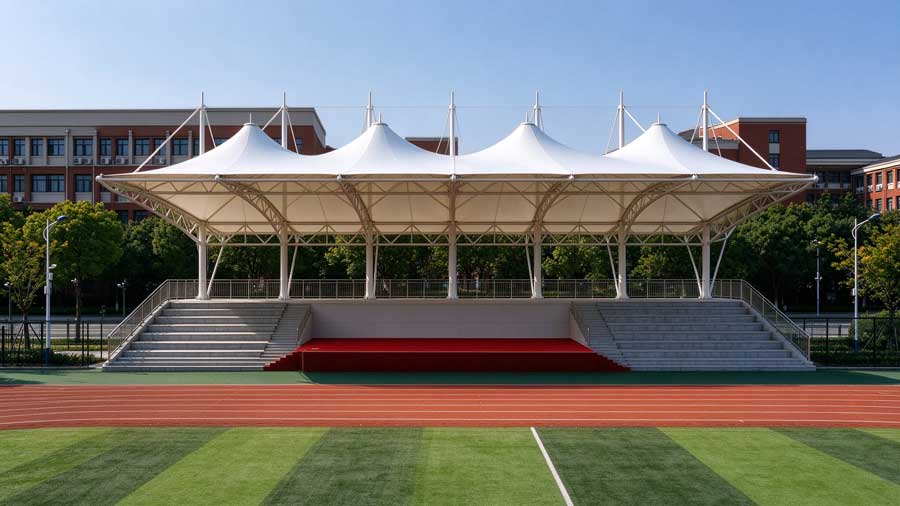

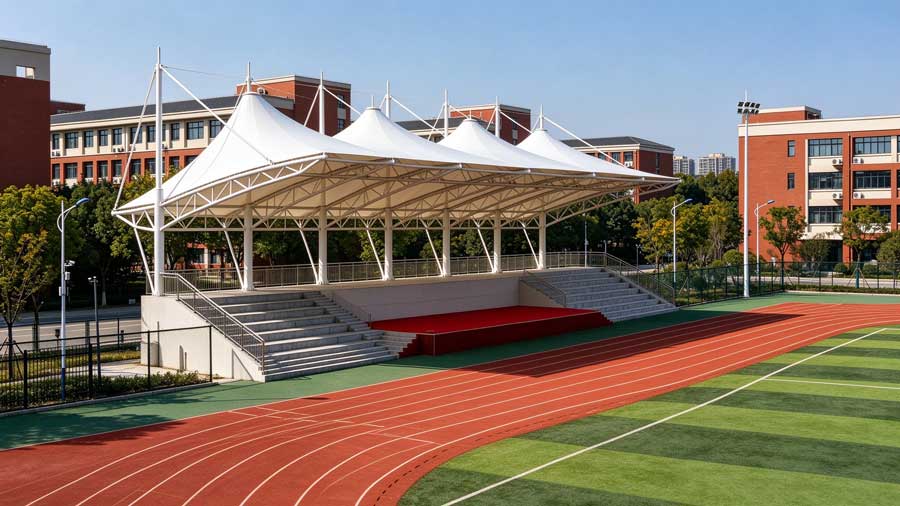

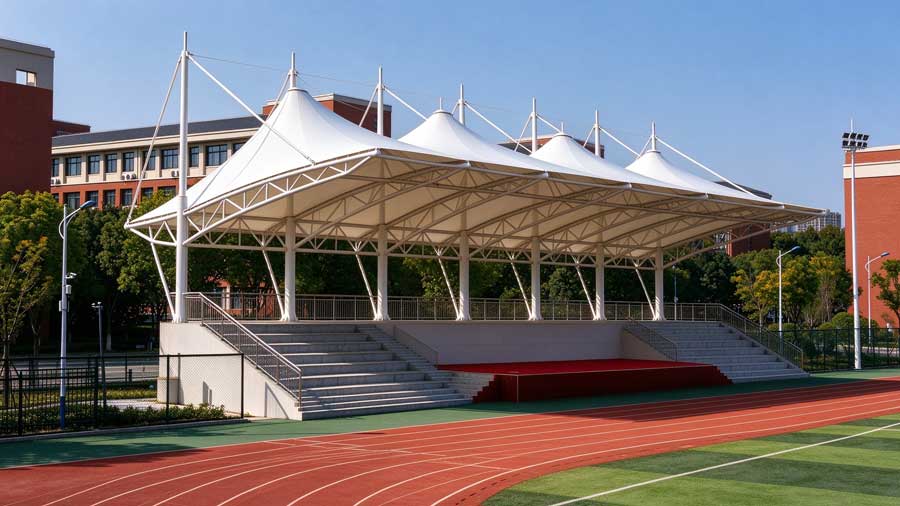

In many school sports facilities, the grandstand is a high-use area that is often exposed to sun and rain. Hefei Wan’an Middle School decided to upgrade its sports field grandstand by installing a membrane structure grandstand canopy. The project covers 384 square meters, measuring 48 meters by 8 meters. It uses PVDF1250 high-strength membrane material and a Q235 steel structure, with matching accessories. The total construction period was 25 days. After completion, the canopy not only provided reliable shade and rain protection but also became a modern and lightweight visual highlight on campus. As a typical membrane structure stadium canopy case, it demonstrates the practical value and artistic effect of tensile membrane canopies for school sports fields.
1. Project Background and Client Requirements
Hefei Wan’an Middle School is located in Hefei, Anhui Province, China. The school sports field is used for PE classes, recess activities, school sports meetings, assemblies, and other events. The original grandstand was open-air, which meant students and teachers were exposed to strong sunlight on hot days and could not use the seating during rain. The school wanted a membrane grandstand canopy that could provide shade and rain protection, offer a modern appearance, remain safe and durable, and avoid disrupting normal teaching and sports activities. In the early stage, the client focused on similar cases, local projects, construction capability, site visits, and quotations. Based on the school’s needs, we provided a membrane structure grandstand canopy solution and designed the structure according to local wind and snow loads.
2. Key Challenge: No Disruption to Student Sports
The biggest challenge was that students still used the sports field during construction. A conventional daytime continuous construction schedule would have caused too much disruption. We communicated closely with the school and arranged lifting, welding, tensioning, and other noisy or space-occupying works during non-sports hours, after school, on weekends, and at night. Overtime work was used to shorten the schedule. The site was divided into controlled work zones, safety officers were present throughout, and material delivery was arranged to avoid student activity peaks. Under strict safety management, the project was completed in 25 days, minimizing the impact on teaching and sports.
3. Design and Materials: Wind and Snow Load Design
The main structure uses a Q235 steel frame, designed according to local wind and snow loads in Hefei. This ensures overall stability and resistance to wind and snow. The steel structure is treated with anti-corrosion protection, and connectors, cables, and accessories are selected for long-term outdoor use. The membrane material is PVDF1250 high-strength membrane, known for self-cleaning performance, UV resistance, and excellent weather resistance, making it suitable for long-term use in school sports fields. During design, we focused on drainage slope, membrane pre-tension, thermal movement, and node waterproofing. These details ensure that the membrane grandstand canopy performs well in both summer sun and rainy weather.
4. Construction Method: Factory Prefabrication and Segmented Lifting
The project adopted factory prefabrication for steel structures and membrane materials, followed by segmented lifting on site. Steel components and membrane panels were processed in the factory and then transported to the site, reducing on-site welding and noise. On-site work included base re-measurement, segmented steel frame lifting, welding and fixing, anti-corrosion touch-up, membrane unfolding, tensioning, and drainage inspection. The membrane surface was tensioned evenly, drainage was smooth, and the overall shape was clean and elegant. After completion, the site was cleaned and the sports field was restored for normal use. This construction method improved efficiency and adapted well to the school’s special time requirements.
5. Completion Results and Client Feedback
After completion, the membrane structure grandstand canopy provided large-area shade and rain protection for the grandstand. Its simple, modern shape blends well with the school sports field environment. School leaders gave positive feedback on both the installation process and the final result. The client said, “The effect is good, meeting the expected requirements, and adding a very good artistic effect to the square.” Students and teachers can now watch games, hold assemblies, and organize activities without suffering from sun or rain. The overall image of the sports field has also been improved.
6. Why This Case Is Valuable for Similar Projects
If you are looking for a membrane structure grandstand canopy, membrane grandstand rain shelter, or membrane stadium canopy, this project offers strong reference value. The project covers 384 square meters, measures 48 meters by 8 meters, was completed in 25 days, uses PVDF1250 high-strength membrane and Q235 steel structure, and is designed according to local wind and snow loads. Whether for a school sports field, stadium grandstand, or public square shade canopy, the design can be customized according to site dimensions and usage requirements. We can provide similar cases, local projects, construction capability demonstrations, site visits, and quotations.
7. Services and Quotation
We provide membrane structure solution design, structural calculation, membrane processing, steel prefabrication, on-site installation, and after-sales service. We undertake school sports field grandstand canopy projects in Anhui and across China. If you want to know the price, construction period, materials, or installation plan for a membrane structure grandstand canopy, please contact us. We can arrange a visit to the Hefei Wan’an Middle School project or nearby similar projects and provide free consultation and a quotation based on your site.
8. FAQ
Q: How long does a membrane grandstand canopy take to install?
A: For a project of about 384 square meters, factory prefabrication and coordinated on-site installation can be completed in around 25 days, depending on site conditions and weather.
Q: Can construction be arranged outside school hours?
A: Yes. For school projects, we can arrange night work, weekend work, and holiday work to reduce disruption to students and teaching.
Q: What materials are used?
A: This project used PVDF1250 high-strength membrane, Q235 steel structure, and matching accessories.
Q: Is the canopy designed for local weather?
A: Yes. The steel structure and membrane system are designed according to local wind and snow loads to ensure safety and durability.
The Hefei Wan’an Middle School membrane structure grandstand canopy project proves that a professional membrane stadium canopy can solve shade and rain protection problems while improving the artistic quality and usability of a school sports space. Choosing a team with similar cases, strong construction capability, and local project experience helps ensure safety, schedule control, and final results.
